Germanjet 17 Series

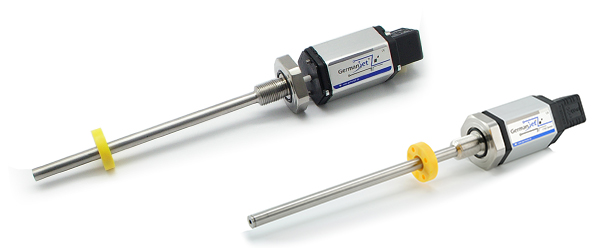

The 17 series non-contact absolute position transducer is specially designed for hydraulic cylinder to provide precise, direct and absolute position feedback. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily. In some instance, if the transducer needs to be re-calibrated, the hydraulic body no need to be detached from the hydraulic cylinder. This modular design can greatly reduce the cylinder reset time and improve efficiency.

The transducer is rated for IP65 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector (DIN 43650) is common for use in hydraulic device and easy for field connection. Besides for hydraulic system, it is also suitable for machine installation. The absence of electrical contact eliminates all wear and guarantees almost unlimited mechanical life expectancy.

Model Number	Output	PDF
170	0-10V and 10-0V Dual Output
171	0-20mA
172	20-0mA
173	Start / Stop
174	4-20mA
175	20-4mA
176	CANBus
177	SSI
